Open Top Containers

Container Details:

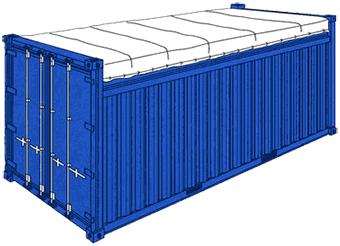

20' OPEN TOP	Millimetres Feet Internal Dimensions Length 5'895 19'4'' Width 2'344 7'8'' Height 2'347 7'8'' Door Opening Width 2'336 7'8'' Height 2'160 7'1'' Roof Opening Width 5'335 17'6'' Height 1'900 6'2''   Kilograms Lbs Weight Max. Payload 28'130 62'020 Container-Tare 2'350 5'180 Max. Gross Wt. 30'480 67'200   Cube Metres Cube Feet Volume Capacity Max. Payload 31,5 1'112

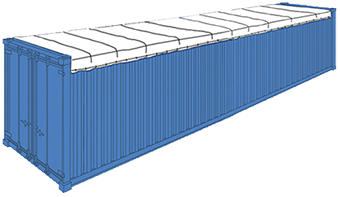

40' OPEN TOP             For large and/or high pieces that can not be loaded through container doors, such as machineries, marble, glass sheets, etc.	Millimetres Feet Internal Dimensions Length 12'022 39'5'' Width 2'344 7'8'' Height 2'347 7'8'' Door Opening Width 2'336 7'8'' Height 2'275 7'5'' Roof Opening Width 11'515 37'9'' Height 1'880 6'2''   Kilograms Lbs Weight Max. Payload 26'740 58'955 Container-Tare 3'740 8'245 Max. Gross Wt. 30'480 67'200   Cube Metres Cube Feet Volume Capacity Max. Payload 65,4 2'306

• Internal dimensions and weights are based on shipping line's and manufacturer's specifications. Tolerances must always be taken into account by shipper. Above mentioned details are to be considered as a guideline only.

• Weight restrictions may be considered throughout the whole transport leg. National rules and regulations for road and rail transport, capacity limitations of cranes in seaport and inland-terminals as well as other factors may overrule the possible payload of a container.

• For precise case-by-case information consult your local Freight Forwarder, Packaging Specialist or the specific shipping line you are going to book with.
